How to configure an ODBC Datasource to PowerBI with CData ODBC Driver?

How to configure an ODBC Datasource to PowerBI with CData ODBC Driver?

FIRST CREATED ON 20 Mar 2025  I  AUTHOR Emma Camacho

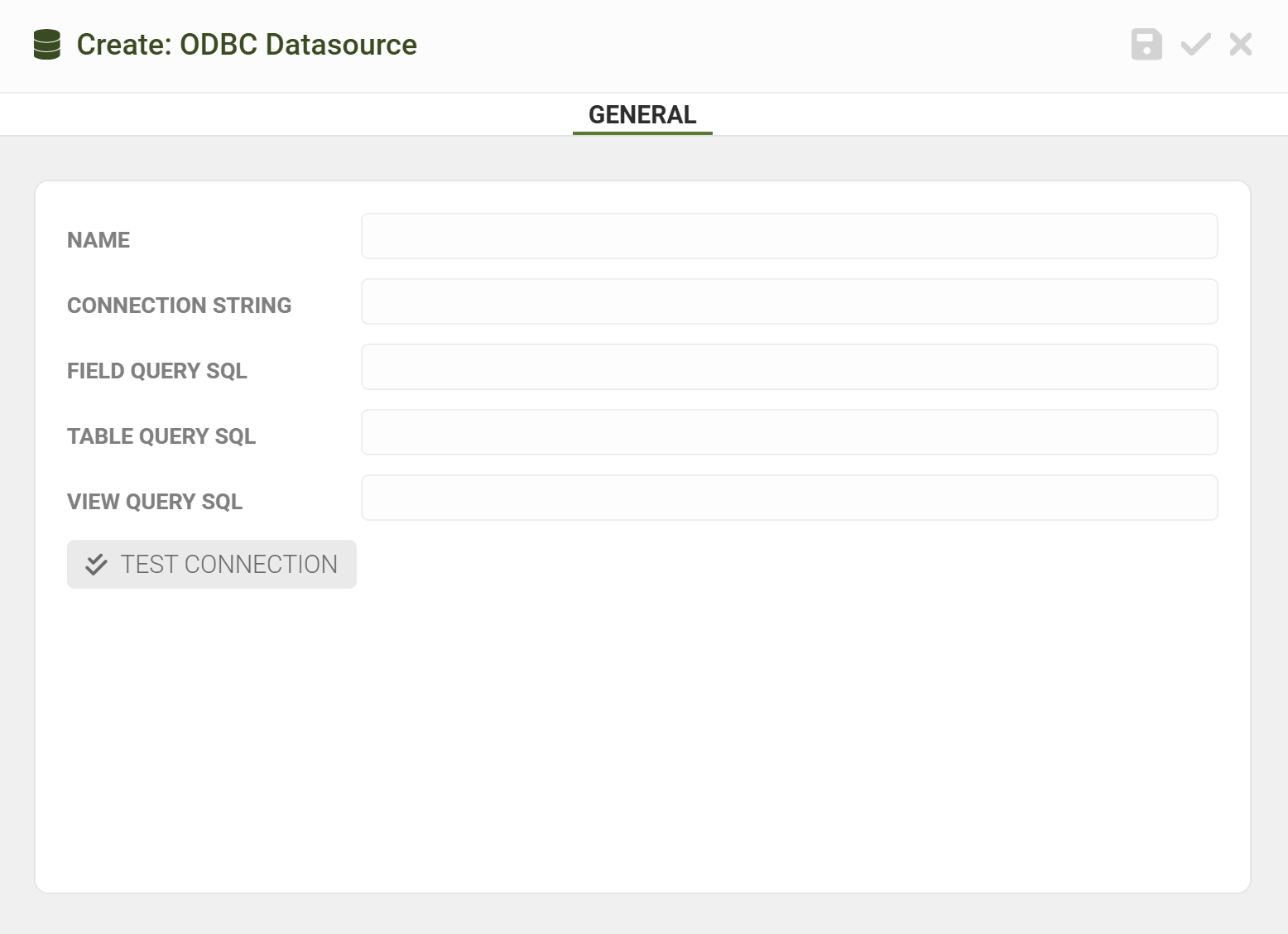

CONNECTION STRING
For this Connection String, you can start with this example, but you can add more settings.
Driver={CData ODBC Driver for Microsoft Power BI XMLA};AuthScheme=AzureServicePrincipal;AzureTenant=<tenant id>;OAuthGrantType=CLIENT;OAuthClientId=<client id>;OAuthClientSecret=<secret>;Workspace=<workspace>;

FIELD QUERY SQL
For this field, try the following query and add the where clause you need:
SELECT distinct ColumnName as COLUMN_NAME, TableName as TABLE_NAME FROM sys_tablecolumns

TABLE QUERY SQL
For this field, try the following query and add the where clause you need:
SELECT distinct TableName as TABLE_NAME FROM sys_tables

VIEW QUERY SQL


Steps to get the following items <tenant id> <client id> <secret>

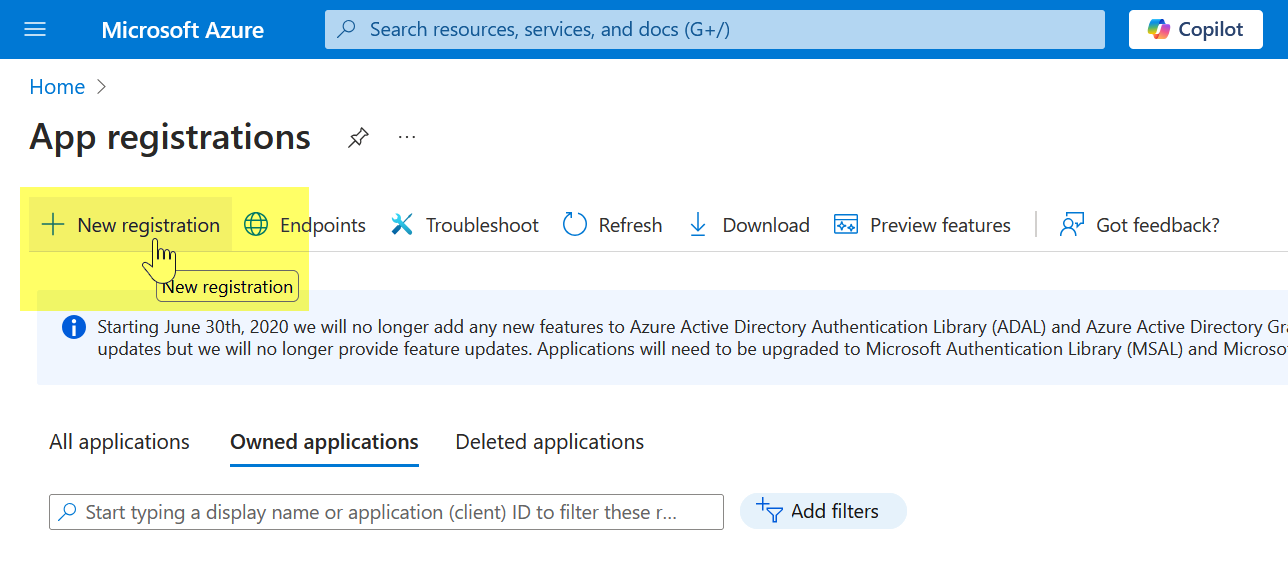

1) Add a new registration in portal.azure.com: App registrations - Microsoft Azure

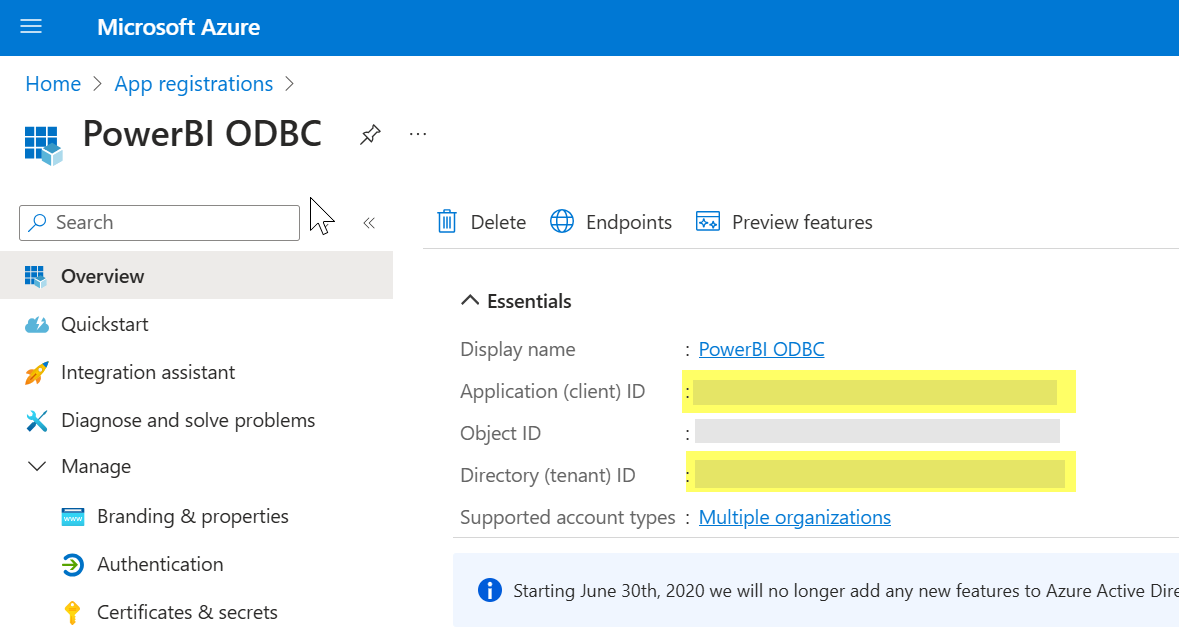

2) In the App Overview, note the Application (client) ID as <client id> and Directory (tenant) ID as <tenant id>. In this example, the name of the App is PowerBI ODBC.

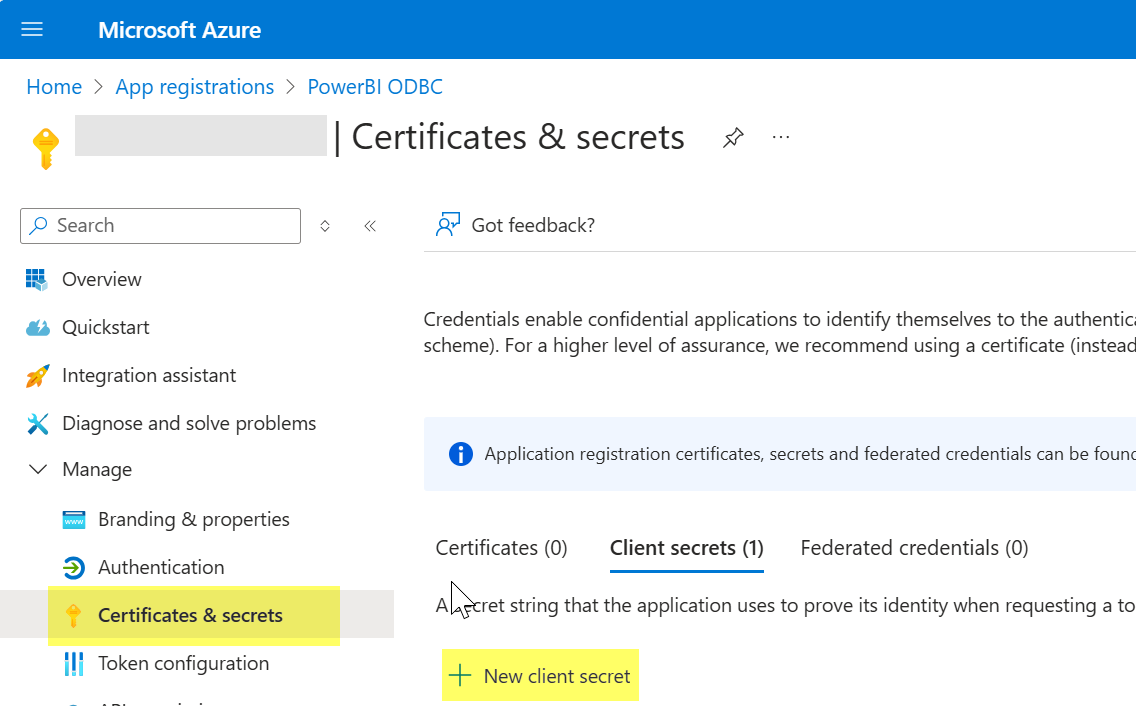

3) Create a secret

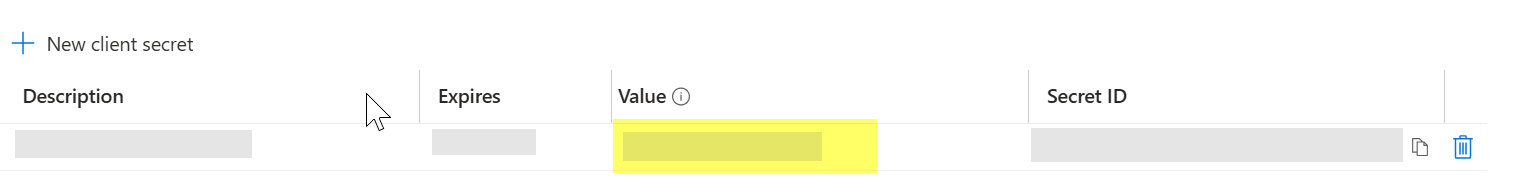

4) Note the Value as it will be available just once. This is the item <secret>.


Steps to find the item <workspace> and to grant access to the previously created App.
1) Log in to https://app.powerbi.com.

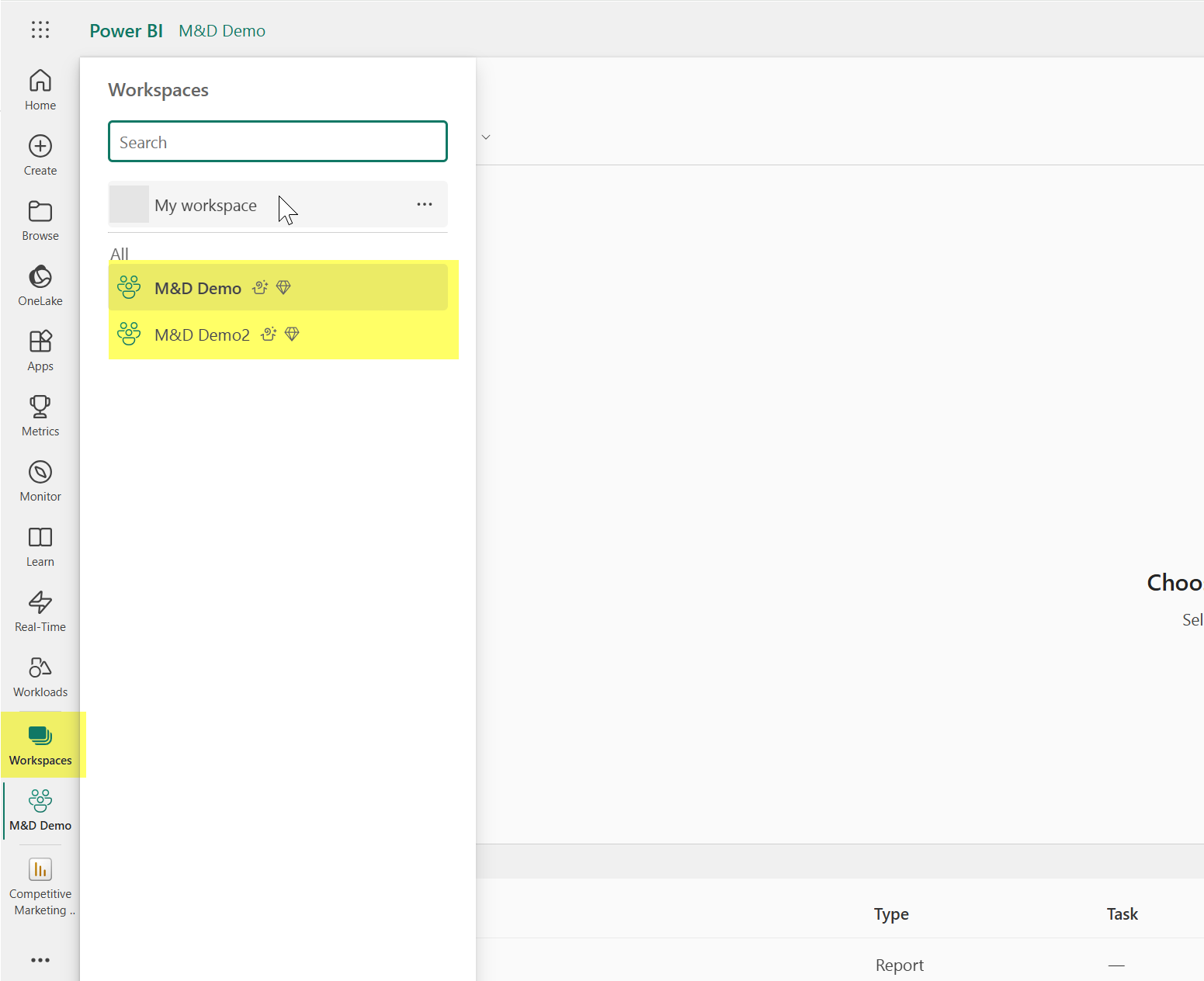

2) From the list of Workspaces, set the item <workspace> to the one M&D should connect to. Create a M&D Datasource for each Workspace, if M&D should connect to more Workspaces.

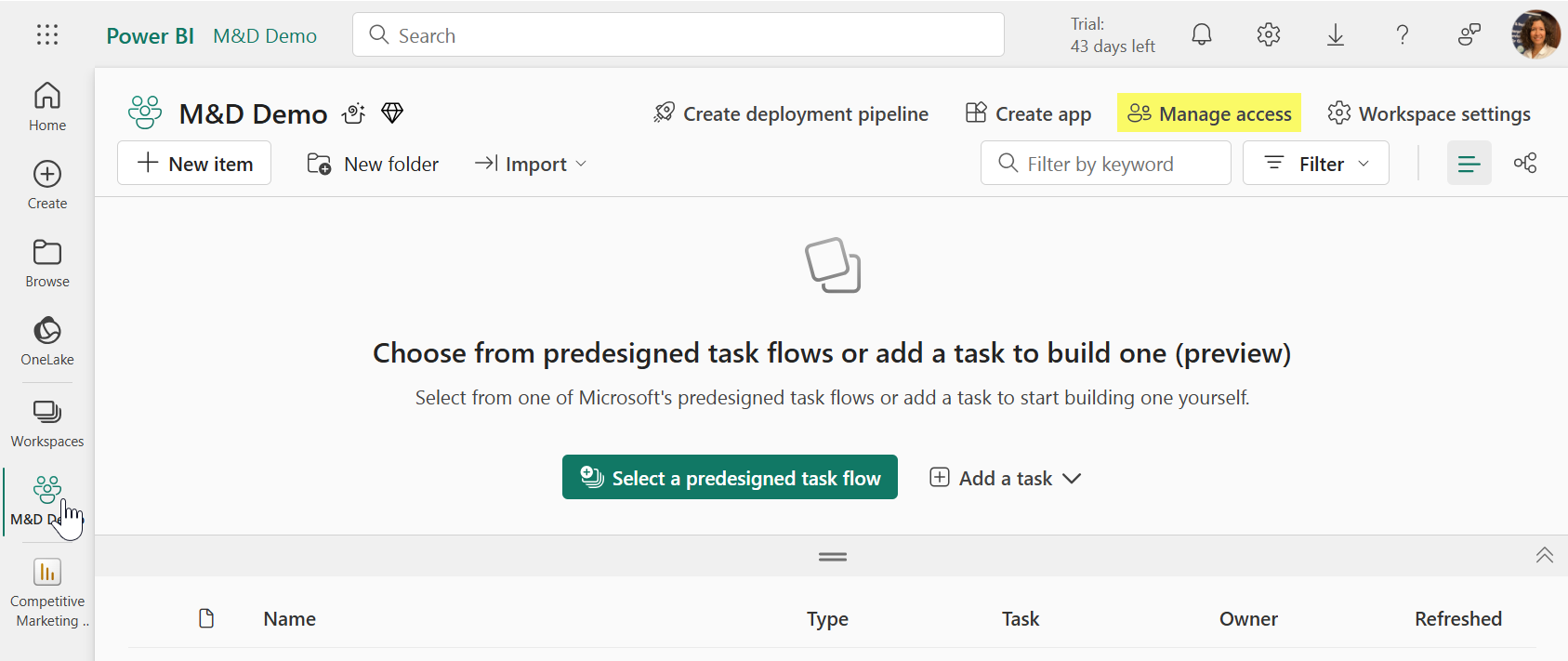

3) In the Workspace(s), press Manage Access

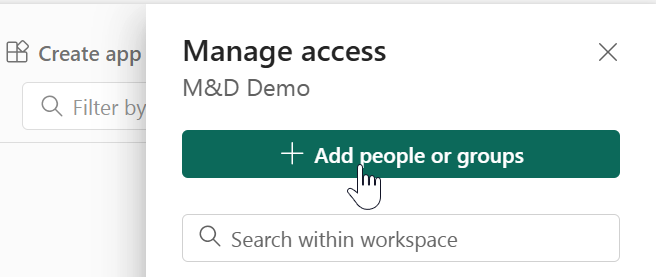

4) Press +Add people or groups

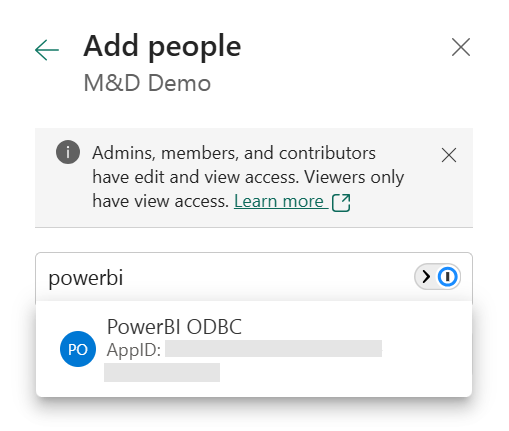

5) Find the name of the App previously created, in this example, the name of the App is PowerBI ODBC and it add as a Member.
