FIRST CREATED ON 12 Aug 2025  I  AUTHOR Emma Camacho

​

Creating an Excel report using a PowerBI as a data source in Mail & Deploy allows you to leverage powerful data analysis capabilities. Here's an example to help you get started:
Use case
Design the 3 Top Stores Analysis Report.

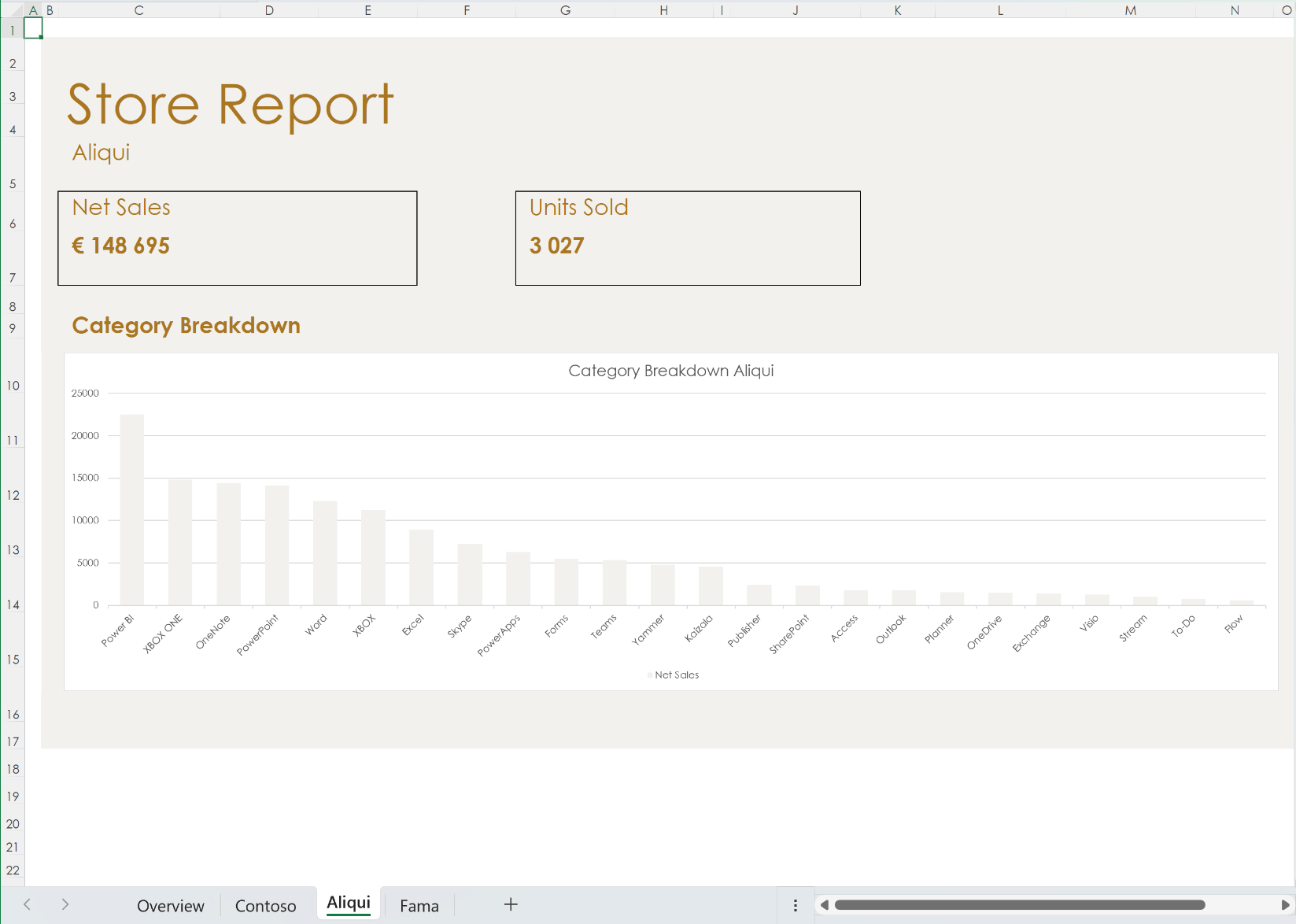

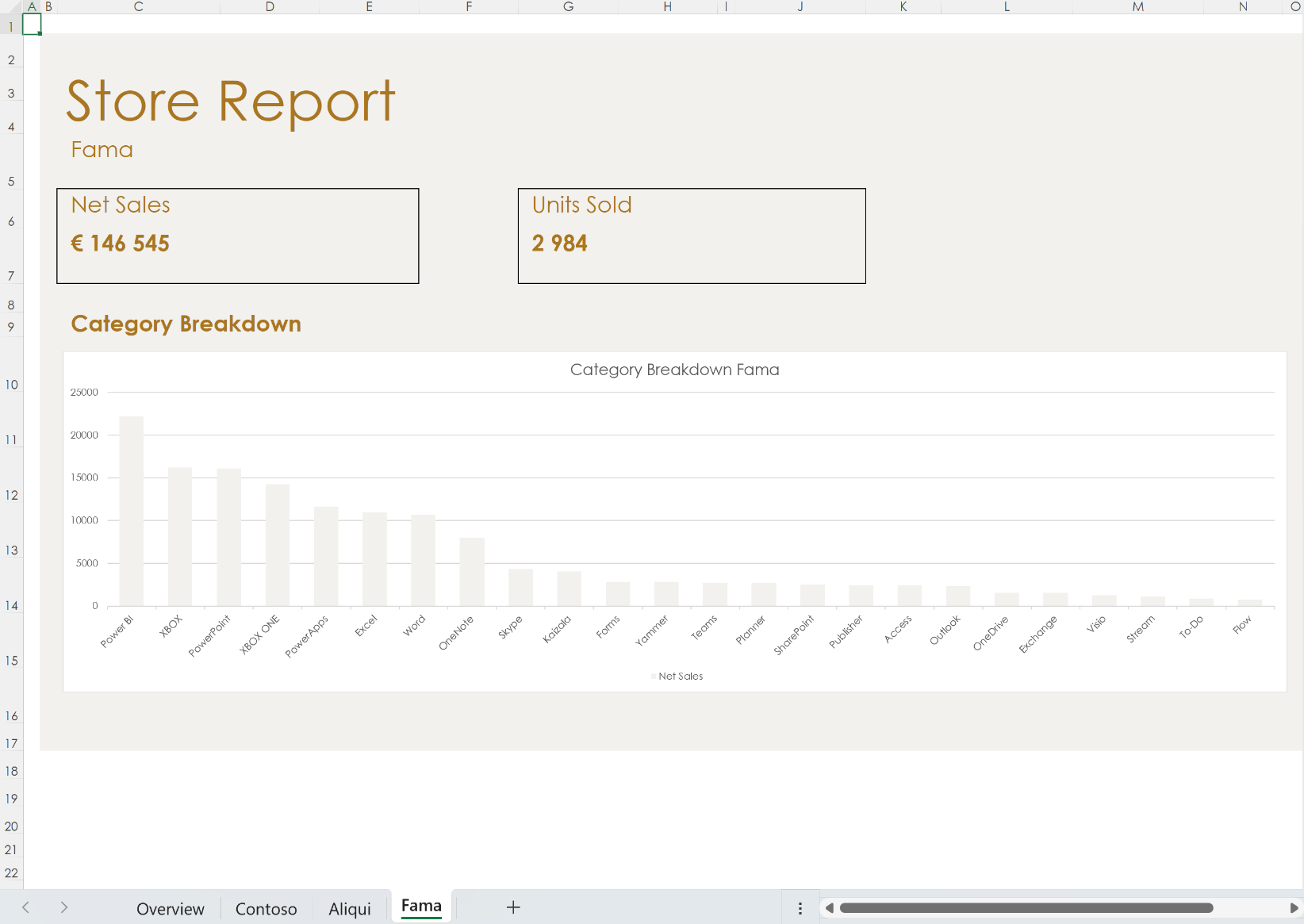

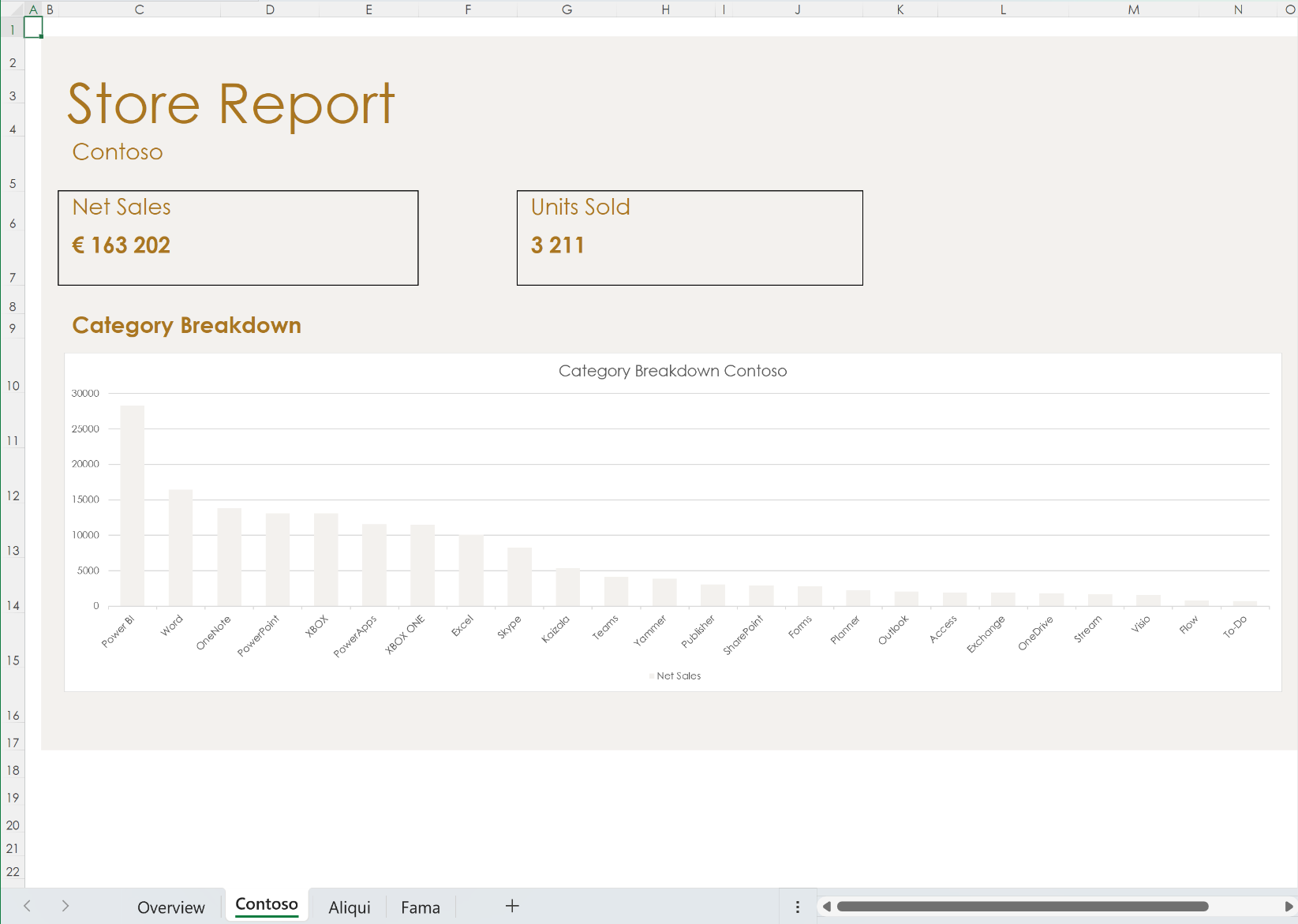

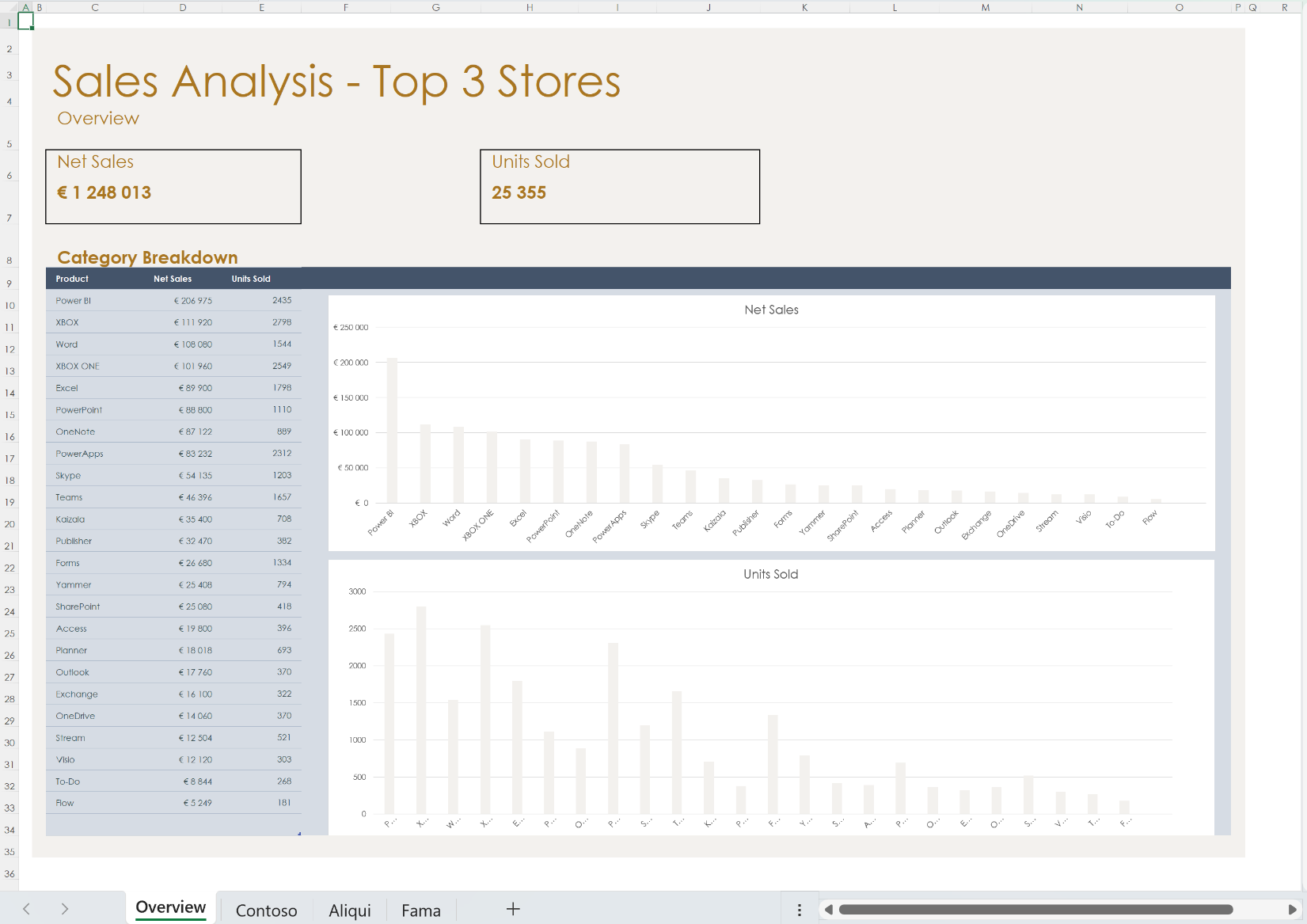

Mail & Deploy Report









How to get there?

PowerBI Server Database datasource

How to configure a PowerBI Datasource in version 3.6 and higher?

This example uses the PowerBI report Sales & Returns Sample. You can find it here: Sales & Returns Sample v201912.pbix.

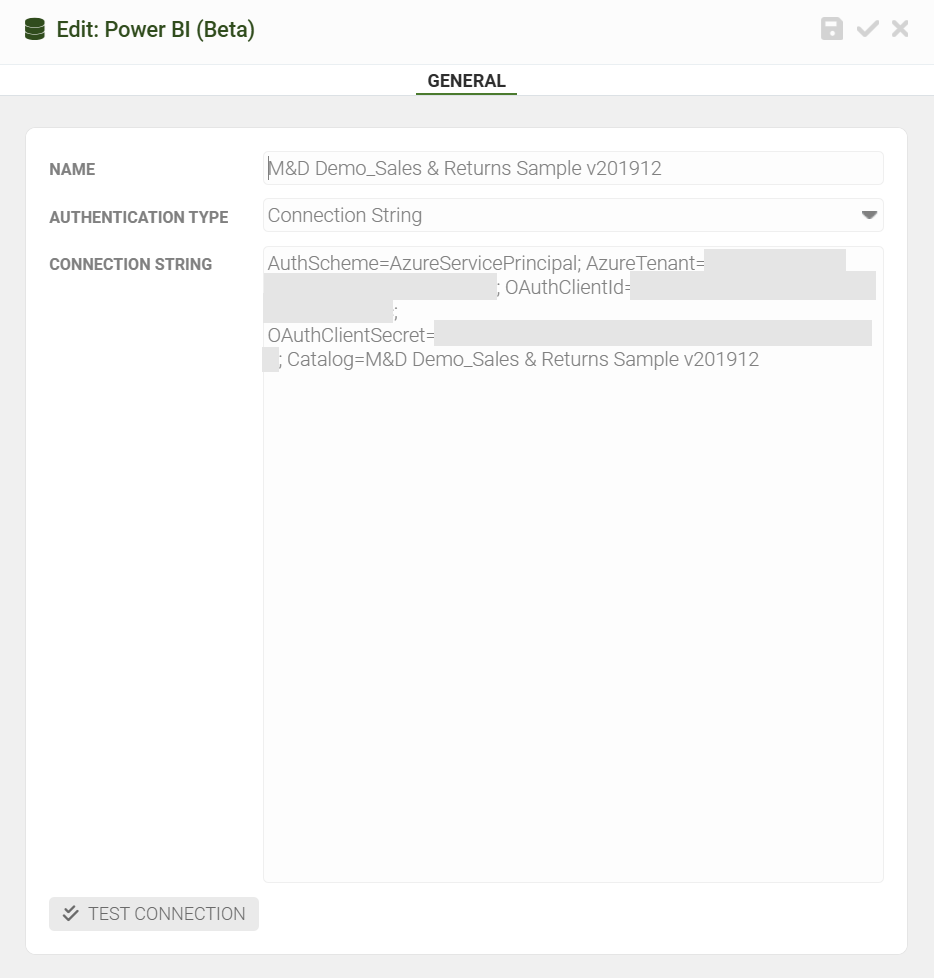

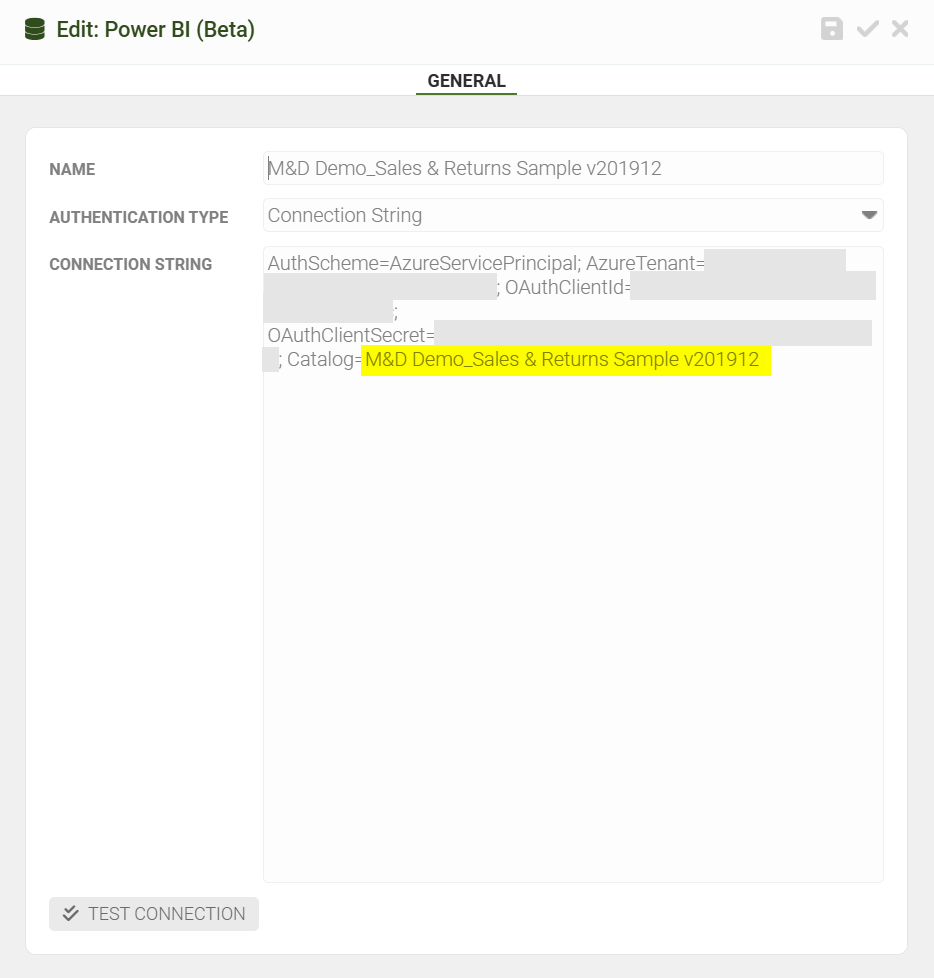

Datasource definition

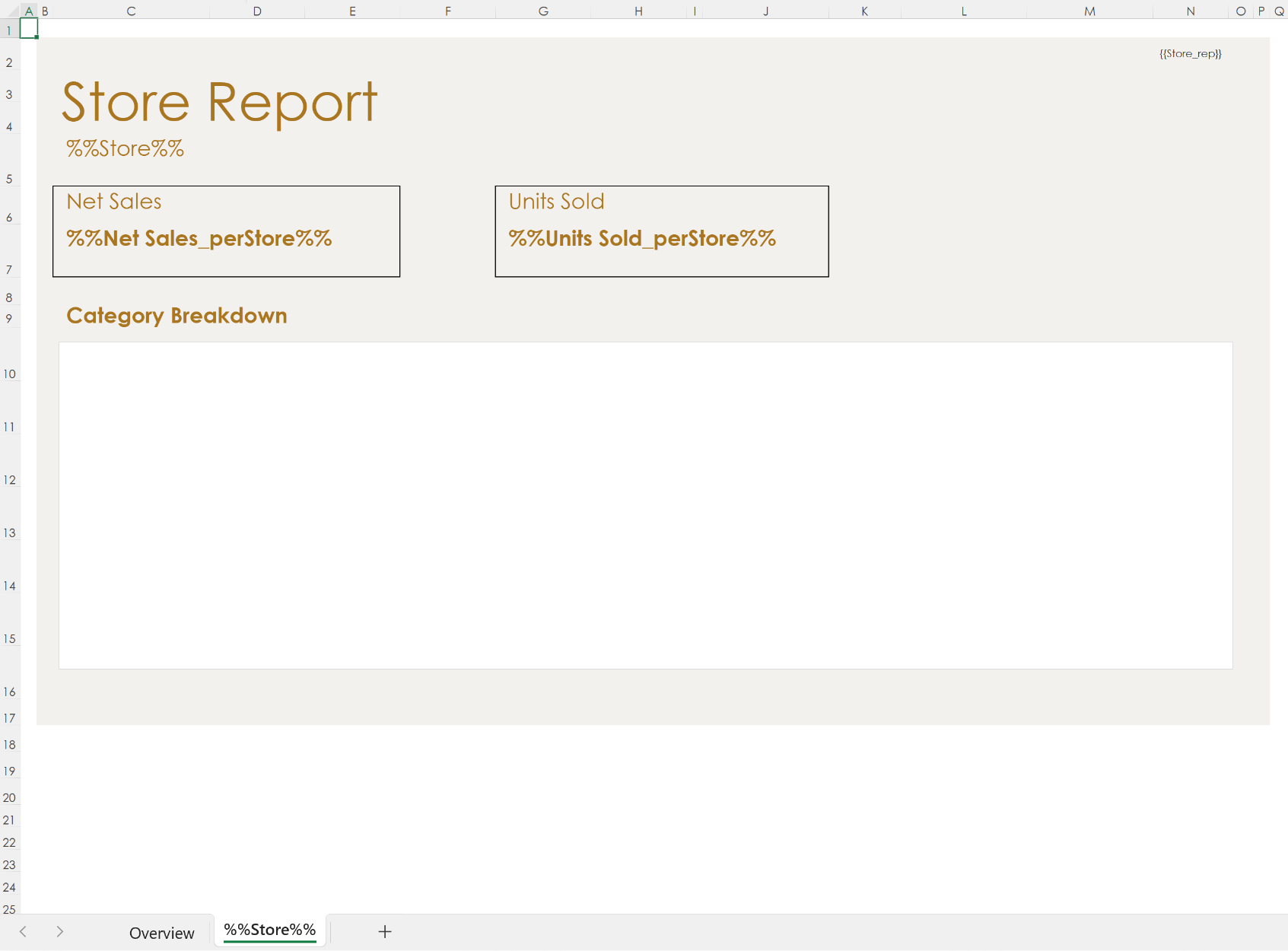

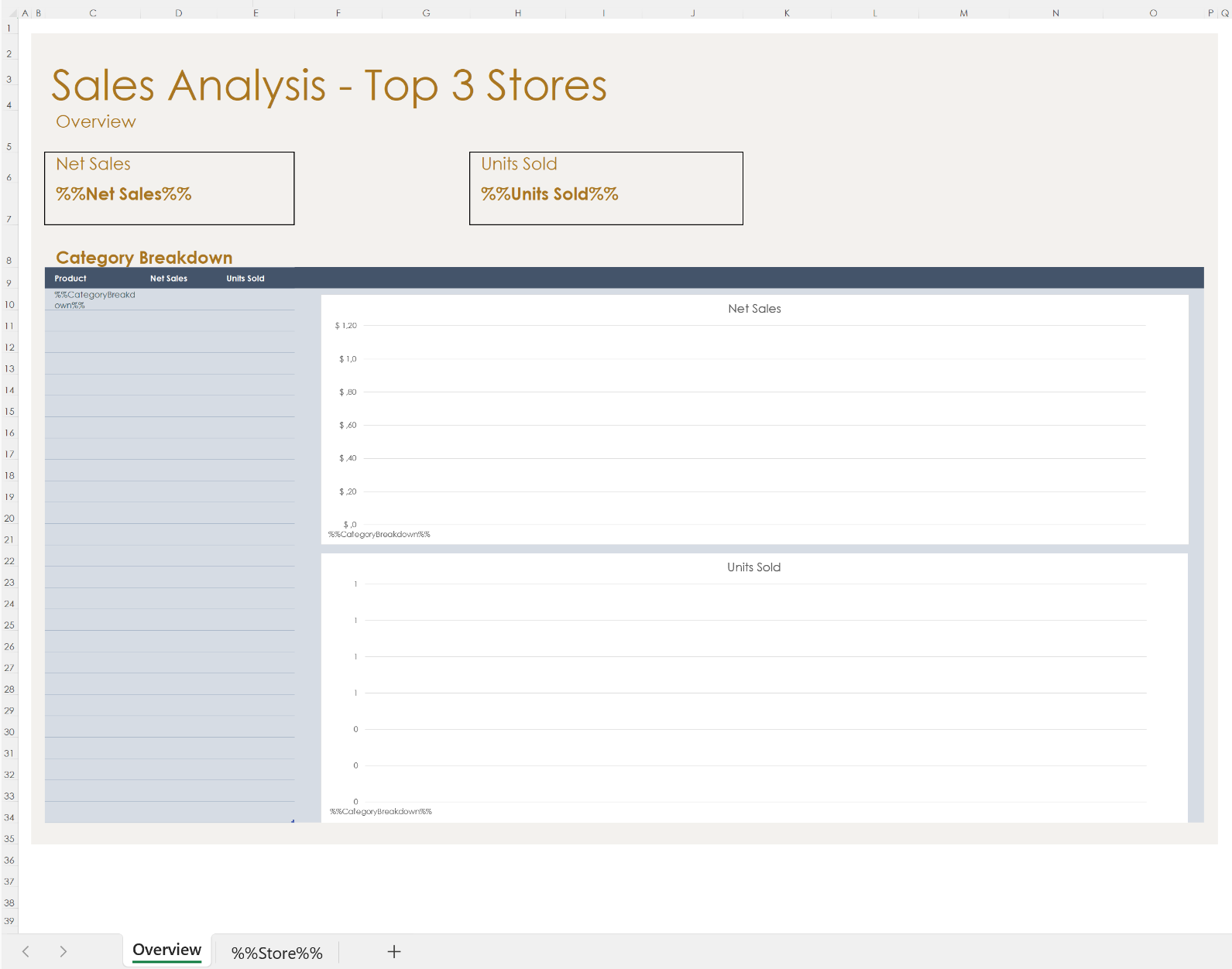

Report Template




The template is attached to this article.

PARAMETERS

Datasource

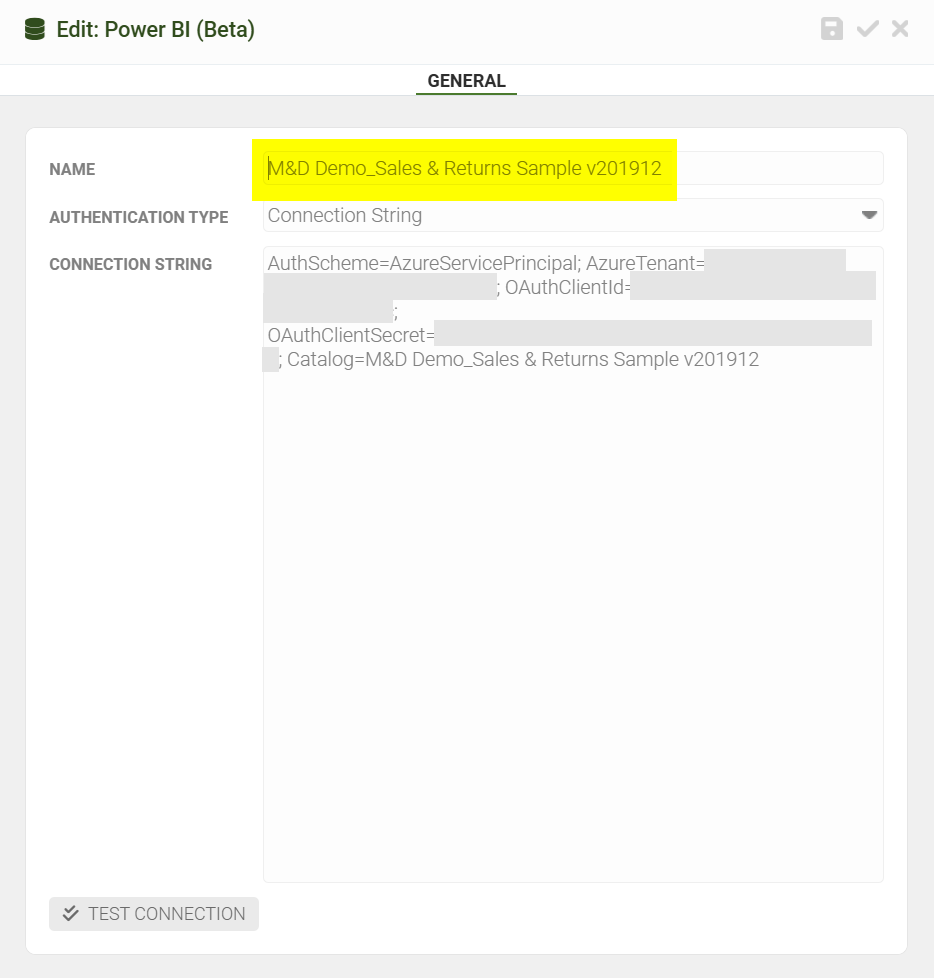

"M&D Demo_Sales & Returns Sample v201912"
This is the name of the Datasource used in the M&D Datasource definition and it is used to ease the SQL queries writing.


Model
"[M&D Demo_Sales & Returns Sample v201912].[Model]"
In order to ease the SQL queries writing, this parameter can be defined.



ELEMENTS

NetSales
EvaluateDatasourceExpression( [ReportParameter].[Datasource],
"SELECT  s.[Net Sales] FROM " &
[ReportParameter].[Model] & ".Measures As s  " )

Units Sold
EvaluateDatasourceExpression( [ReportParameter].[Datasource], "SELECT  s.[Units Sold] FROM " &
 [ReportParameter].[Model] & ".Measures As s  "   )

Category Breakdown
Source: SQL Query
SQL Query Datasource: M&D Demo_Sales & Returns Sample v201912
SQL Query: "SELECT  p.[Product], s.[Net Sales], s.[Units Sold] FROM " &
 [ReportParameter].[Model] & ".Product As p  " &
 "INNER JOIN " & [ReportParameter].[Model] & ".Measures As s  " &
 "group by p.[Product] order by s.[Net Sales] desc "
Insertion Mode:  Write To Worksheet
Row Insertion Mode: Overwrite

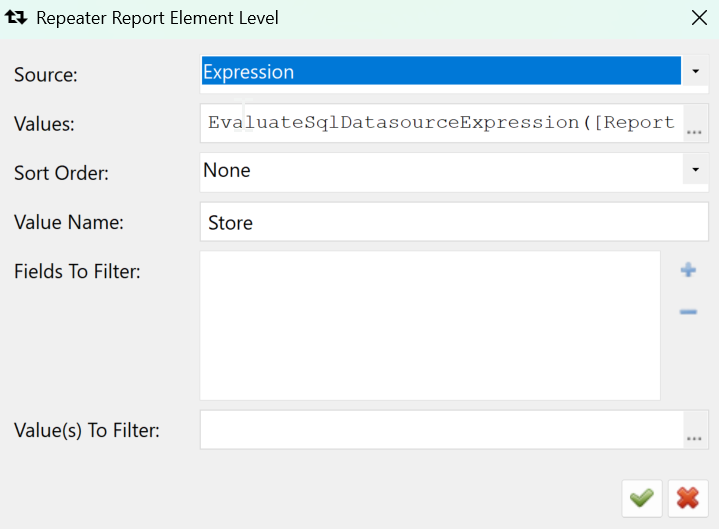

Store_rep

EvaluateSqlDatasourceExpression(
[ReportParameter].[Datasource], "SELECT  store.[Store] FROM " &
 [ReportParameter].[Model] & ".Store As store " &
 "INNER JOIN " & [ReportParameter].[Model] & ".Measures As s  " &
 "group by store.[Store] order by s.[Net Sales] desc LIMIT 3 " , 2 )
For more information, see EvaluateSqlDatasourceExpression.

Store
[RepeatedValue].[Store]

Net Sales_perStore
EvaluateDatasourceExpression( [ReportParameter].[Datasource], "SELECT  s.[Net Sales] FROM " &
 [ReportParameter].[Model] & ".Store As store " &
 "INNER JOIN " & [ReportParameter].[Model] & ".Measures As s  " &
 "where store.Store = '" & [RepeatedValue].[Store] &"'"  )

Units Sold_perStore
EvaluateDatasourceExpression( [ReportParameter].[Datasource], "SELECT  s.[Units Sold] FROM " &
 [ReportParameter].[Model] & ".Store As store " &
 "INNER JOIN "&[ReportParameter].[Model]&".Measures As s  " &
 "where store.Store = '" & [RepeatedValue].[Store]&"'"  )

CategoryBreakdown_perStore
Source: SQL Query
SQL Query Datasource: M&D Demo_Sales & Returns Sample v201912
SQL Query:   "SELECT  p.[Product], s.[Net Sales] FROM " &
 [ReportParameter].[Model] & ".Product As p  " &
 "INNER JOIN " & [ReportParameter].[Model] & ".Store As store " &
 "INNER JOIN " & [ReportParameter].[Model] & ".Measures As s  " &
 "where store.Store =  '" &[RepeatedValue].[Store]& "'  group by p.[Product] order by s.[Net Sales] desc "
Insertion Mode:  Fill MSO Chart
